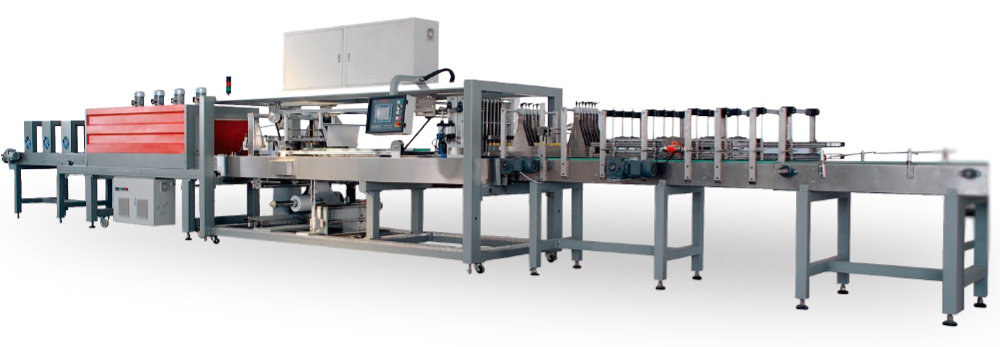

YCBS30 Shrink Film Packaging Machine

Application

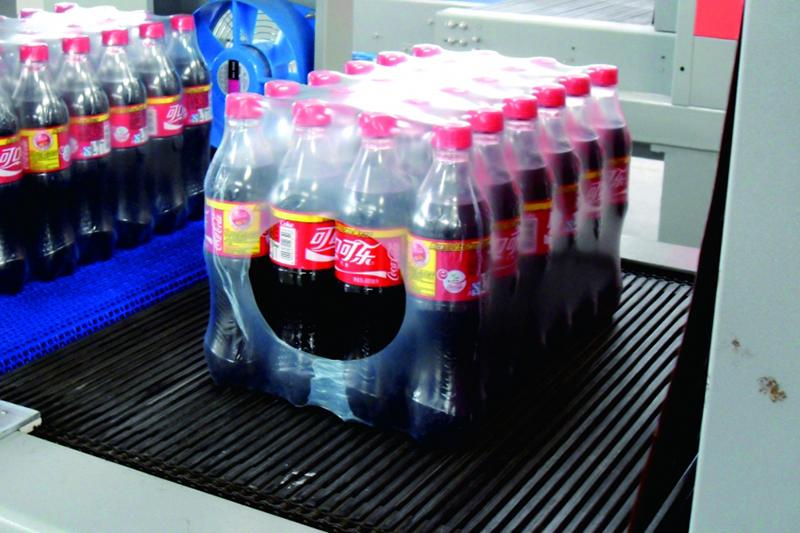

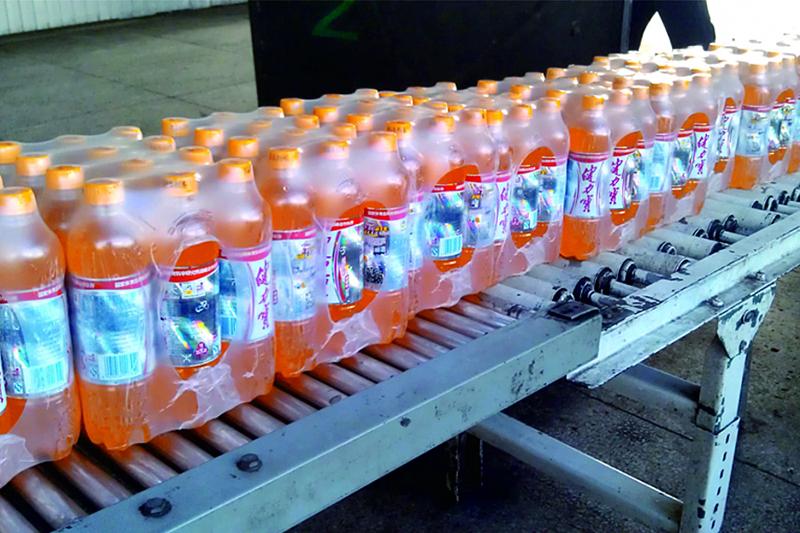

The YCBS30 shrink film packaging machine features a packaging speed of 28 pcs/min and is suitable for shrink film packaging of beer, beverages, fruit juices, bottled water, dairy products, condiments, and so on. It can be designed with or without tray.

Technical parameters
Equipment model YCBS30
Machine dimension L16390mm * W1800mm * H2500mm
Shrinkage tunnel dimension L2500mm * W700mm * H450mm
Maximum package dimension L460mm * W280mm * H345mm
Packing speed 28 pcs/min
Conveyor belt width 686mm
Working voltage/power 3Phase 5Line 380V 65KW
Working pressure 0.6-0.8Mpa
Air consumption 80NL/min-100NL/min
Total weight 5200KG
Features
  • The YCBS30 shrink film packaging machine has a unique film unwinding device and film constant tension conveyor. The machine can carry out instantaneous film cutting, automatic film overlapping and wrapping, and high strength shrink packaging.

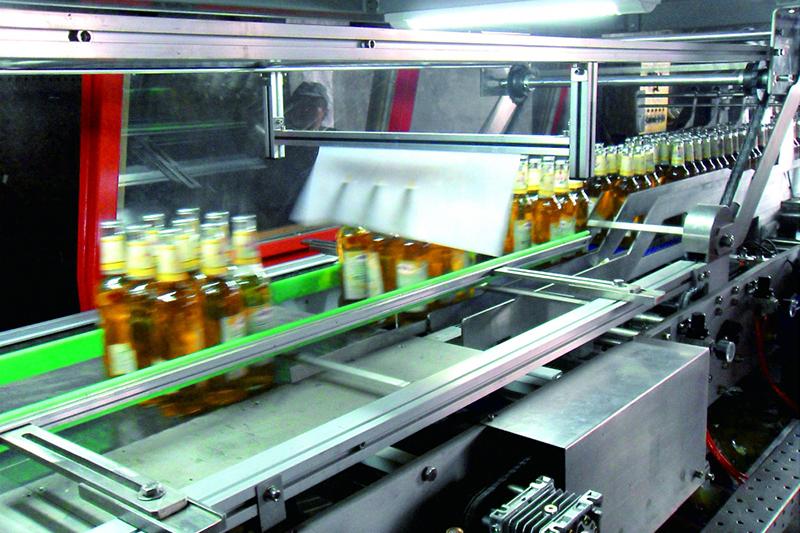

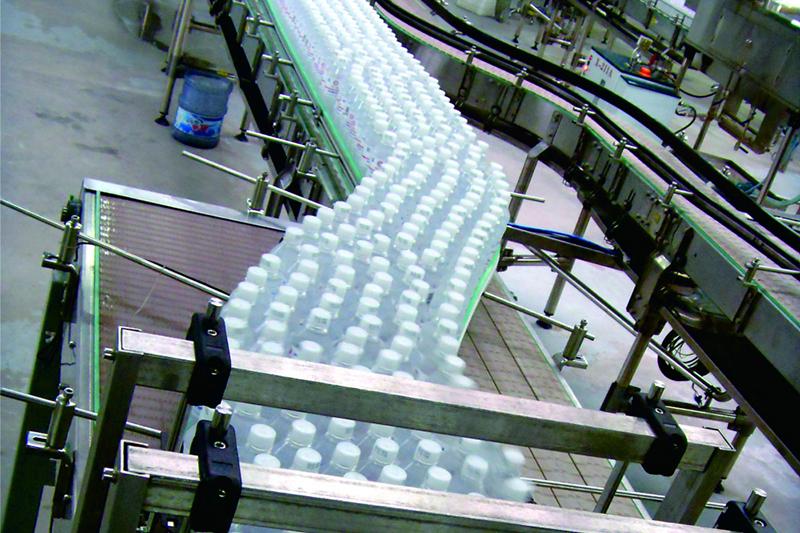

  • Servo motor control system, bottles or cans infeeding, film feeding, film cutting and film wrapping are precisely synchronized, stable and reliable.
  • It has a user-friendly interface, fast parameter setting, convenient communication and manipulation with touch LCD screen.
  • A unique hot air circulation structure is adopted in shrink room with smooth belt transmission, high abrasion resistance and long service life.

When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
