Specification
Model | YCMD30L-A |
Production capacity | 20-25 |
Working pressure | 0.6~0.8Mpa |
Total power | 13kw |
Weight | 6000kg |
Machine dimension | L5350mm*W9120*H3834 mm |
Maximum stacking height | 1700mm |
Maximum stacking weight | 1600kg |
Features

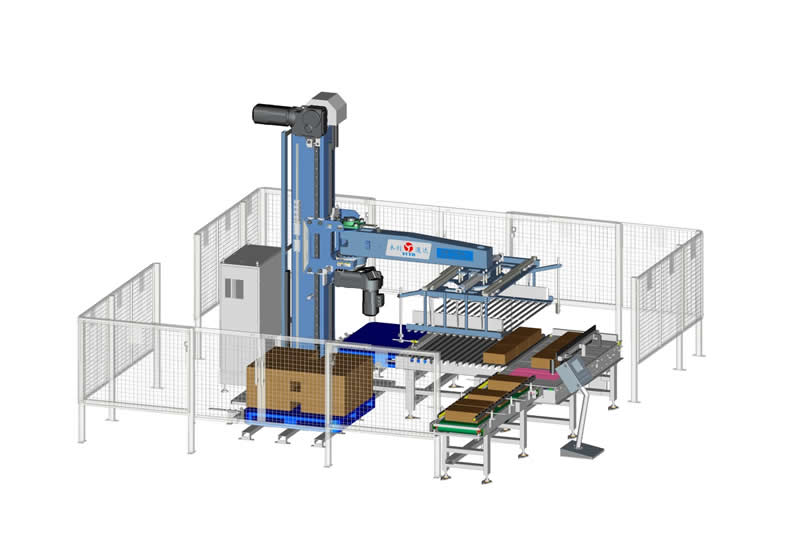

- This industrial column type palletizing robot uses internationally known, advanced technology, and features an excellent appearance and smooth movement.
- The industrial stacker crane with low level operation uses an international advanced design concept, giving it a more advanced and reasonable structure, lighter and smoother operation and a low power consumption.
- This palletizing machine utilizes automated control systems, famous European PLC and frequency converter brands, which achieve sorting and stacking of cartons/shrink packs, as well as rapid communication capabilities, powerful diagnostic capabilities and ensures the system reliability.
- It is convenient and simple to adjust the stacking method using the human-machine interface and without replacing stacking parts in order to complete stacking methods for carton stacking or shrink pack.
- It uses a modular design, artificial pallet or an optional automatic pallet structure, which has a high cost performance.
- Multiple security features.
When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
