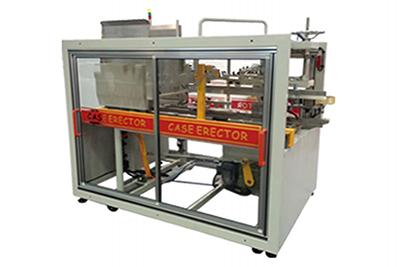

YCKX35 Case Erector

Specification
Model YCKX35
Unpacking capacity 30cases/min
Carton temporary storage 80pcs(800mm)
Carton dimension L:240-510 W:190-400 H:120-400mm (The minimum size cannot appear at the same time)
Power 380V 3ф 746W
Air pressure 5kg/cm2
Air consumption 300NL/min
Machine dimension L2372×W1210×H1820mm
Tape size 48, 60mm
Machine weight 1000kg
Features
  • The YCKX35 case erector is suitable for carton opening and carton bottom sealing of various sizes. If changing carton size, you can adjust it manually in just 3 to 5 minutes, and has an automatic warning reminder to add cartons.
  • Horizontal carton storage can add empty cartons without any downtime, which saves time and improves efficiency.
  • This machine completes the carton suction box, unpacking, forming, folding bottom, sealing bottom and other processes simultaneously.
  • With a cam continuous system, mechanical operation is precise.
  • Forming and sealing using variable speed control, users can adjust the speed and save time.
  • It uses PLC and man-machine interface control so that it can automatically unpack, automatically fold down the bottom cover and automatically seal the bottom of the carton. It features easy operation, simple maintenance, and stable performance and is an essential piece of assembly line equipment for automatic scale production.
  • This machine lowers labor intensity by 3 to 5 operators, saves 5 to 10% of consumable materials, and increases the efficiency by 40%. It reduces costs greatly, improves efficiency and standardizes packaging.

When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
