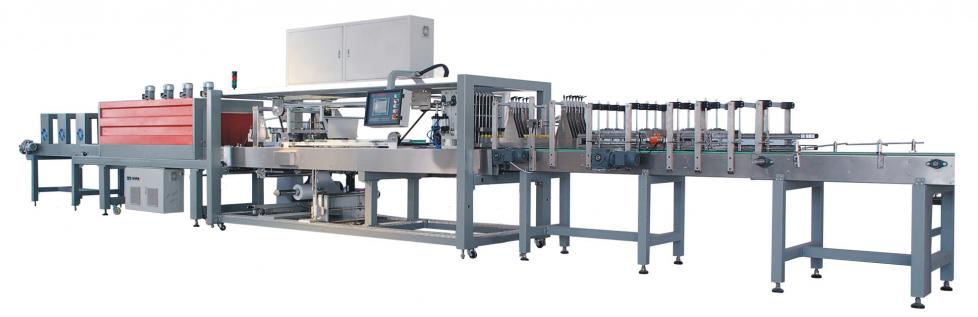

YCBS20ZB Pad and Film Shrink Wrapper Packing Machine

Application
The YCBS20ZB cardboard + film packing machine boasts a packaging speed of 15-20pcs/min and is suitable for shrink film packaging of beer, beverages, fruit juices, bottled water, dairy products, condiments, and so on with bottom support.

Technical parameters
Equipment model YCBS20ZB
Machine dimension L12780mm*W2000mm*H2600mm
Packing speed 20-25 pcs/min
Working voltage/power 3Phase 5Line 380V 45KW
Working pressure 0.6-0.8Mpa
Air consumption 300NL/min
Total weight 5000KG
Features
  • Automatic assembly into packages during product transport, which can save time and improve efficiency.
  • It has the characteristics of user-friendly interface, fast parameter setting, convenient communication and manipulation with touch LCD screen.
  • Air circulation technology delivers heat insulation and heat preservation, high precision of temperature control, and better packaging effect.
  • Suitable for packaging of different bottle diameters and different combinations.
  • This machine can be equipped with pad + film shrink packaging and color shrink wrapping system.

When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
