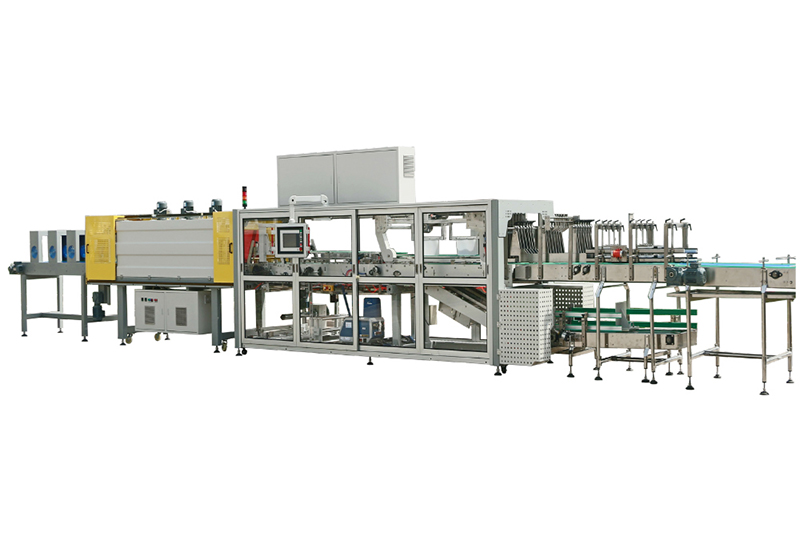

YCBS25ZT Tray and Film Shrink Wrapper Packing Machine

Application

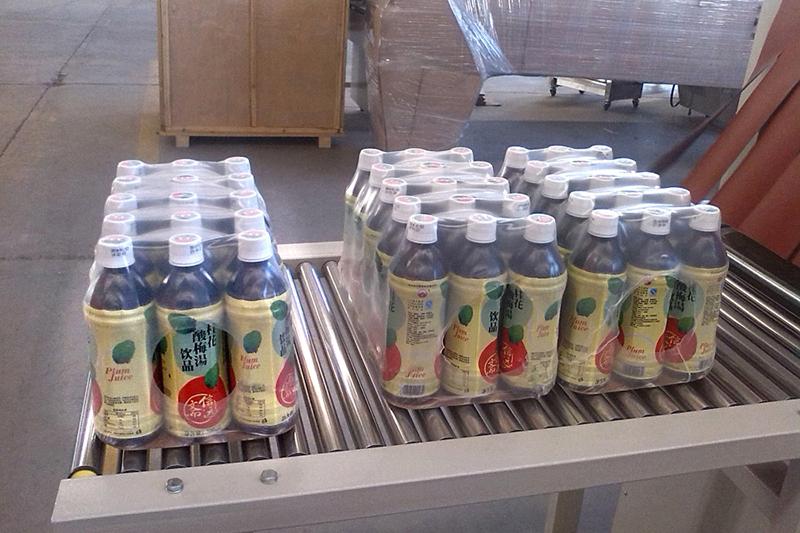

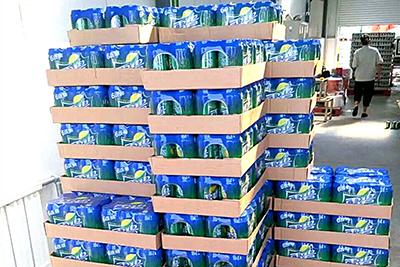

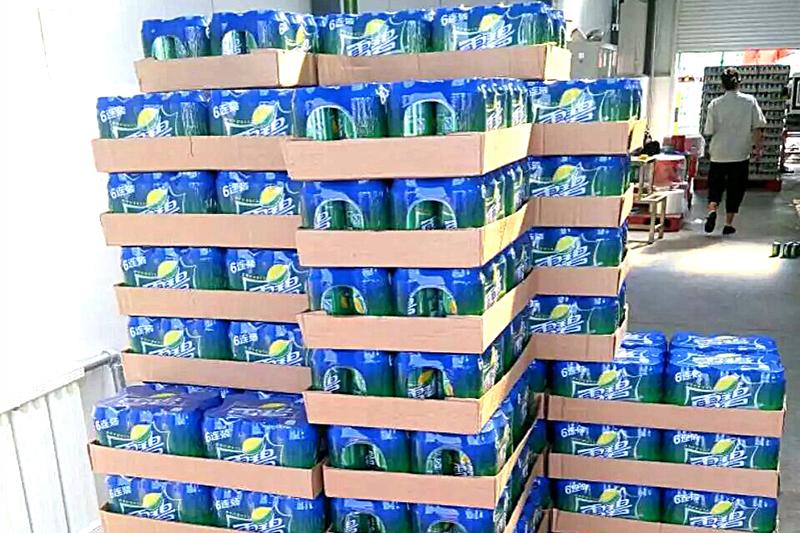

The packaging speed of the YCBS25ZT tray + shrink film packing machine is 20-25 pcs/min. It is used for bottom support packaging for items such as beer, beverages, fruit juice, bottled water, dairy products, condiments, and so on. This is ideal packing equipment for long-distance transportation compared to pure film package and pad and film packages.

Technical parameters
Equipment model YCBS25ZT
Machine dimension L16920mm*W2000mm*H2650mm
Shrinkage tunnel dimension L2500mm*W700mm*H450mm
Maximum package dimension Width=180-280Length=260-420
Packing speed 20-25 pcs/min
Conveyor belt width 610mm
Working voltage/power 3Phase 5Line 380V 60KW
Working pressure 0.6-0.8Mpa
Air consumption 150NL/min
Total weight 5500KG
Features
  • Automatic assembly into packages during product transport, which can save time and improve efficiency.
  • It has the characteristics of user-friendly interface, fast parameter setting, convenient communication and manipulation with touch LCD screen.
  • Air circulation technology, shrink room has reasonable structure, thermal insulation, high accuracy of temperature control and better packaging effect.
  • Suitable for packaging of different bottle diameters and different combinations.
  • This machine can be equipped with a color shrink wrapping system and tray + film shrink packaging.

When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
