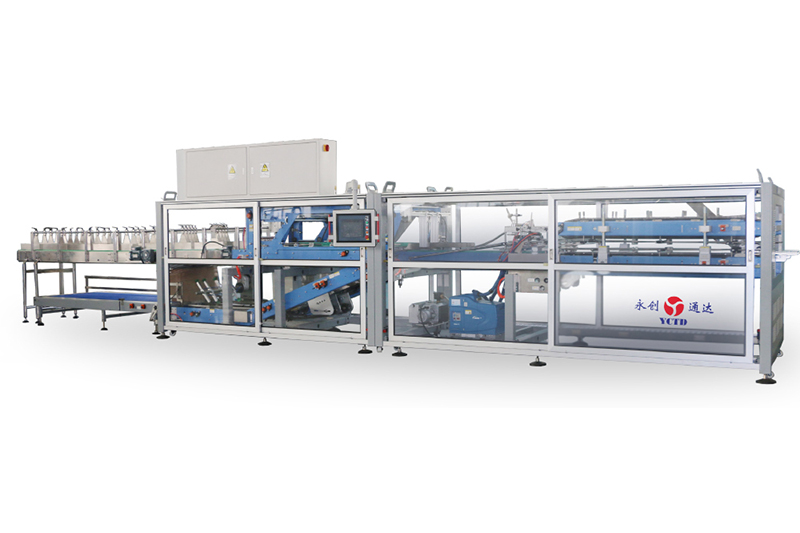

YCZX60 Wrap Around Case Packer

Application
The YCZX60 wrap around case packer's production capacity is 60 cases/min, which is suitable for carton packaging on bottle (can) production lines for beer, other beverages, bottled water, medicine, food, and more. With this packaging method, users can save about 1/5 of the cost of packaging materials when compared to traditional packaging methods.

Technical parameters
Equipment model YCZX60
Machine dimension L12380mm *W3820mm *H2628mm
Formed carton dimension 550 < L+W+H < 1000
Production capacity 60 cases/min
Working voltage/power 380V, 50Hz/22KW three phase
Hot melt adhesive solidify time 1.5~2S
Working air pressure 0.6~0.8Mpa
Machine weight 11000kg
Bottle height 110~340mm
Bottle diameter ф50~180mm
Features
  • Using internationally known hot melt adhesive equipment, operation is easy and the equipment is durable.
  • Advanced technology, including reasonable mechanical structure of linear bottle and board feeding, reliable pneumatic device and advanced electric-control technology.

When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
