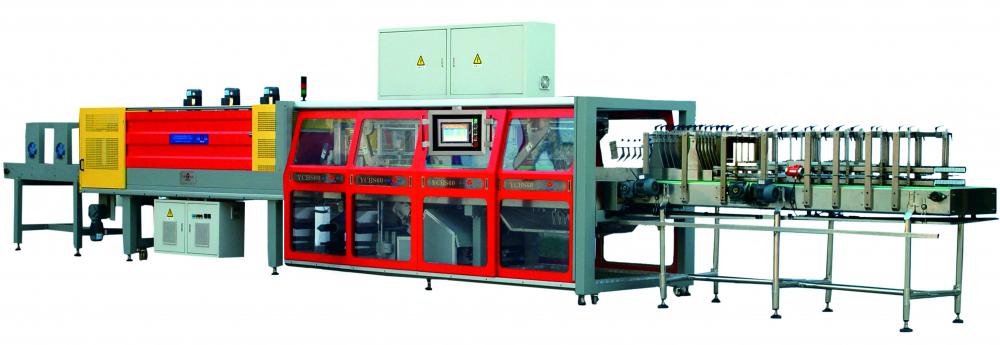

YCBS60 Shrink Film Packaging Machine

Application
The YCBS60 shrink film packaging machine features a packaging speed of around 60 pcs/min. The packaging machine is used for shrink film packaging of beverages, fruit juices, bottled water, dairy products, condiments, etc.

Technical parameters
Equipment model YCBS60
Machine dimension L19145mm * W1800mm * H2500mm
Shrinkage tunnel dimension L2500mm * W700mm * H450mm
Maximum package dimension L460mm * W280mm * H345mm
Packing speed 60 (pcs/min)
Conveyor belt width 610mm
Working voltage/power 3Phase 5Line 380V 65KW
Working pressure 0.6-0.8Mpa
Air consumption 80NL/min-100NL/min
Total weight 5200KG
Features

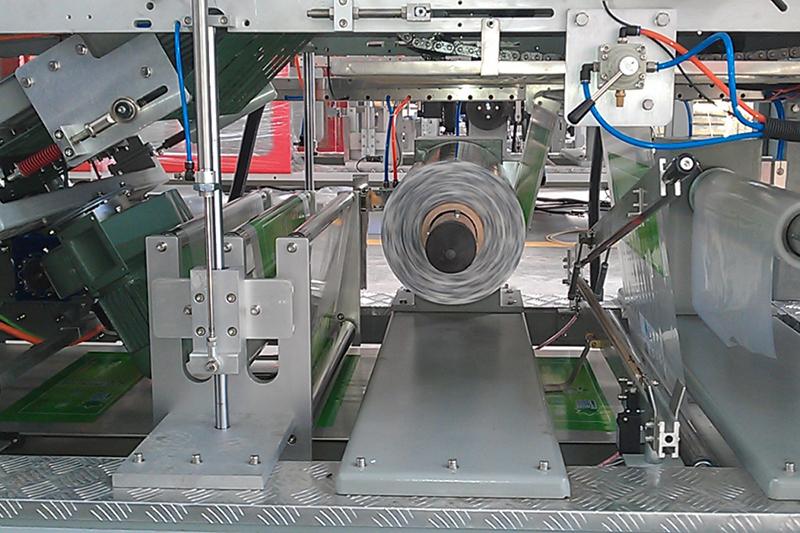

  • The YCBS60 shrink film packaging machine has a unique film unwinding device and constant tension film conveyor. The machine can perform instantaneous film cutting, automatic film overlapping and wrapping, and high strength shrink packaging.
  • With a unique "vibratory dividing unit" bottle separation method, it supports non-blocking and jam-free operation with smooth delivery.
  • A servo motor control system performs bottles or cans infeeding, film feeding, film cutting and film wrapping are precisely synchronized, stable and reliable.
  • Exclusive "ultrathin film conveying system", uses ultra-thin PE film, which is faster and more stable.

When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
