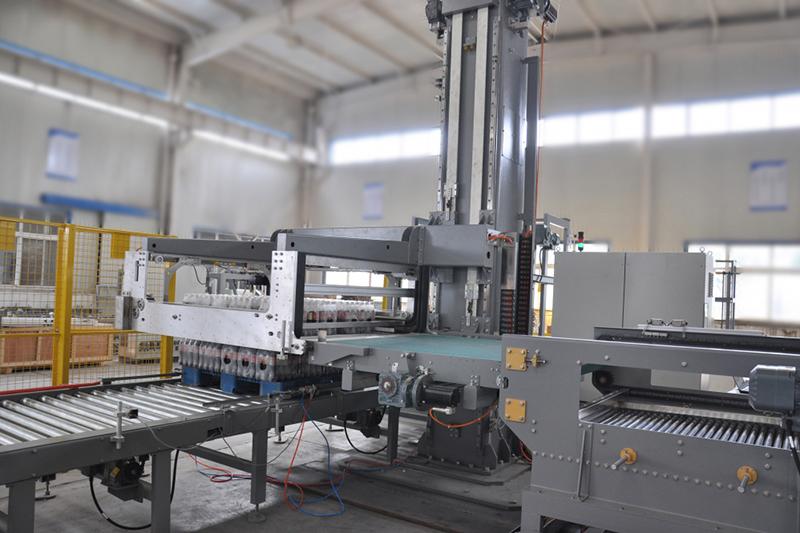

YCMD60 Palletizer

Specification
Model YCMD60
Production capacity 60 cases/min
Working pressure 0.6~0.8Mpa
Total power 10kw
Weight 7500kg
Machine dimension L8000mm*W5200*H3200 mm
Maximum stacking height 1800mm
Maximum stacking weight 1600kg
Features

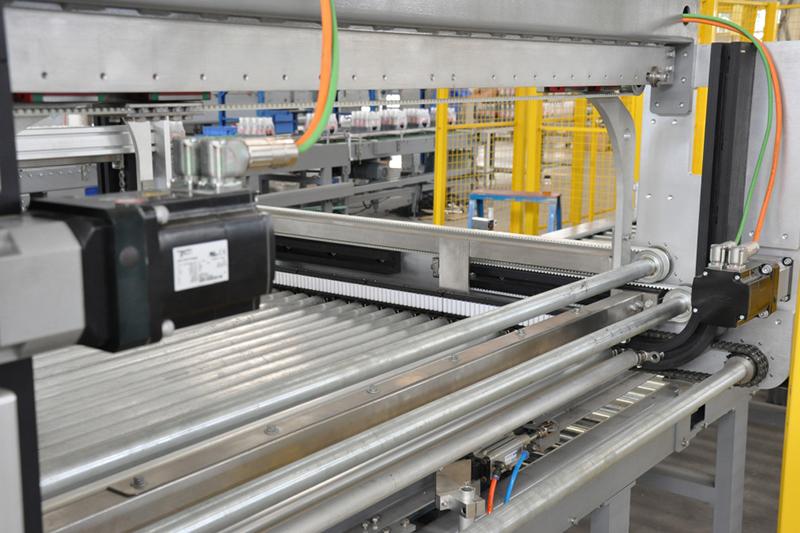

  • The industrial stacker crane uses a servo motor drive, double lift unit and coordinate axis moving control, giving it a stable and reliable operation, as well as precise movement.
  • Using a low-level palletizing machine of international advanced layer by layer stacking design concepts, the structure is more advanced, movement is lighter and smoother and power consumption is lower.
  • Servo control can be used to automatically achieve frequency control, carton delivery, sorting, stacking, pallet unloading, and full pallet load output.
  • With high security, powerful diagnostic functions, multiple safety design and instant display of faults, personal safety is guaranteed, as is quick and easy maintenance.
  • It is convenient and simple to adjust the stacking method on the human-machine interface and there is no need to replace stacking parts.

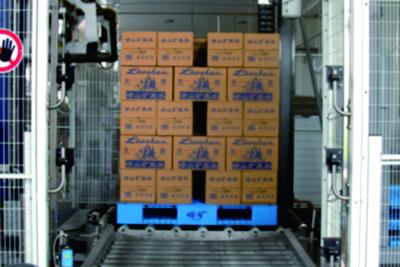

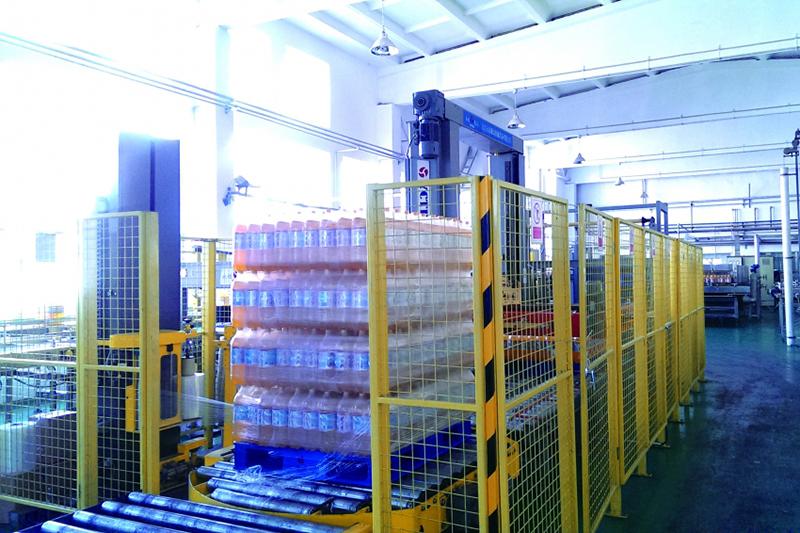

  • Carton or shrink film packaged products can be stacked.

When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
