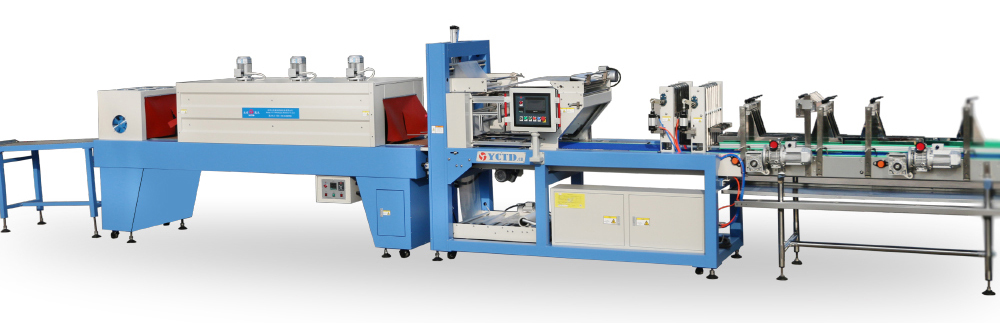

YCBS25 Shrink Film Packaging Machine

Application
The YCBS25 shrink film packaging machine features a packaging speed of 20 pcs/min and is suitable for shrink film packaging of beer, beverages, fruit juices, bottled water, dairy products, condiments, and so on with or without bottom support.

Technical parameters
Equipment model YCBS25
Machine dimension L13840mm * W1100mm * H2100mm
Shrinkage tunnel dimension L2400mm * W650mm * H450mm
Maximum package dimension L600mm * W400mm * H350mm
Packing speed 20 pcs/minute
Conveyor belt width 541mm
Working voltage/power 3Phase 5Line 380V 38KW
Working pressure 0.6-0.8Mpa
Air consumption 350NL/min
Features
  • Automatic assembly into packages during product transport saves time and improves efficiency.
  • Packaging machine adopts programmable controller (PLC) control, which can realize automatic workflow.
  • Using Teflon-coated thermostatic sealing cutter to make the incision smooth and precise.
  • This packaging machine uses Chinese patented technology and is the best choice in the field of medium-rate shrink wrapping machines.

When it comes to secondary packaging equipment, Beijing YCTD Packaging Machinery Co. is king! First established in Beijing in 2001, YCTD specializes in the design and production of equipment used to wrap beverages after their initial packaging. With nearly 2 decades of experience, we have become a leading packaging solutions provider, working with some of the largest beverage producers in the world. Some of our partners include, Huiyuan Group, Coca-Cola, Pepsi, Dali Group, Wanglaoji, Cestbon, Ganten, Uni-President Group, and Master Kong. Our main series of products is made up of heat shrinkable packaging machines, case erector packers, stacking systems, and conveying systems. Quality is what drives us forward and we have built a company strategy around delivering quality products and services to our valued customers.
